- Provides 8 field-selectable cycle durations of 30 seconds, 1, 3, 5, 10, 30 minutes and 1 or 4 hours
- Front cover button enables true flexibility for repetitive cycle times
- Temporary and permanent manual overrides
- 30 separate positions enable precise percentage ON time selection
- User settings stored in non-volatile memory
- No DIP switches to program cycle time
- Type 3R indoor/outdoor aluminum enclosure
- Agriculture Feeders
- Greenhouse Misting Control
Ballast Fluorescent 10 A, 277 VAC, 60 Hz Brand Intermatic California Proposition 65 DEHP Color Gray Country of Origin (Intermatic) MEXICO CSA Certification cCSAus Cycle Duration 1 min, 1-Hour, 10 min: 30 min, 3 min, 30 sec, 4 hours, 5 min Enclosure Type Outdoor type 3R metal General Purpose 20 A, 240 VAC, 60 Hz Material Metal Motor Load Ratings Ranges 1 HP, 120 VAC; 2 HP, 240 VAC, 60 Hz Packaging Applications Fogging Equipment, Misting Systems, Poultry & Livestock Feeders, Process Equipment, Ventilating Fans Pilot Duty 470 VA, 240 VAC, 60 Hz Switch Type SPST Tungsten Incandescent 5 A, 240 VAC, 60 Hz Warranty Period 1-Year limited Wiring Option Wire leads Auto Start/Stop false Check Valve false DOE Compliant false Freeze protection false Operating Temperature Max (°C) 60 Operating Temperature Max (°F) 140 Operating Temperature Min (°C) -10 Operating Temperature Min (°F) -14 Product Depth (in) 3.313 Product Depth (mm) 84.1 Product Height (in) 6.625 Product Height (mm) 168.3 Product Width (in) 3.5 Product Width (mm) 88.9 submersible false Unit Carton Height (in) 4.06 Unit Carton Length (in) 7.38 Unit Carton Weight (lb) 1.397 Unit Carton Width (in) 4 Units Per Pallet 432 UV Resiliant Outdoor Enclosure false
Related Articles

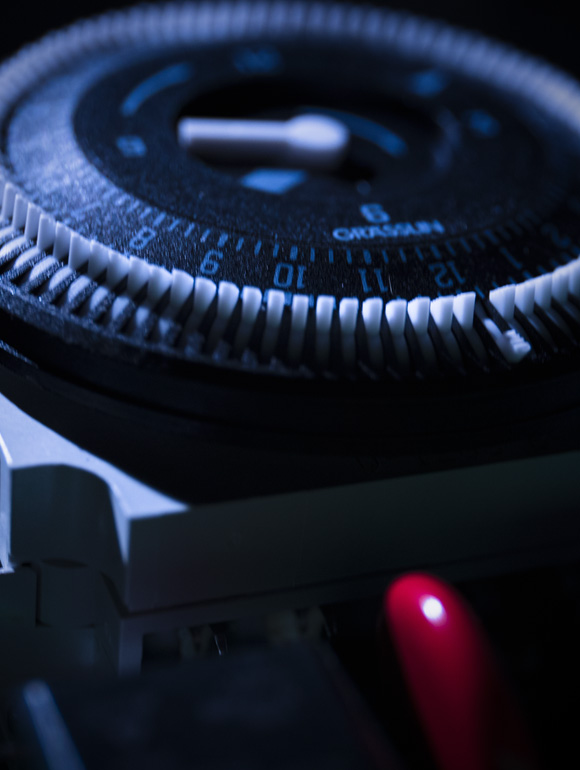

We’ve Got News
